Underground Surveys

Do you have a project we can help with?

Comprehensive Underground Survey Solutions

Our comprehensive suite of Underground Services Surveys brings together the power of underground surveying methods such as Electromagnetic Location (EML), Ground Penetrating Radar (GPR), CCTV Inspection Systems, Underground Utility Surveys and Utility Records Searches. By integrating this information with existing site data or OS digital data, we ensure compilation of a comprehensive, consolidated dataset as a deliverable.

We offer flexible output formats for our underground surveying services, including DWG, PDF, Revit, and more, catering to your specific needs and enhancing the usability of the data. With our approach, you can confidently embark on your projects, knowing that you have access to current and reliable underground utility survey information.

Check out our available services to see how we can assist you:

What is a CCTV Drainage Survey, cctv underground drainage survey, underground surveying

Drainage Connectivity

Site data collection is conducted by our experienced drainage underground survey teams using a selection of Electromagnetic Location (EML), acoustic/dye testing, & camera techniques, recorded by GPS and Total Station..

underground surveying, underground utility survey, underground services survey, underground survey, underground surveying methods

CCTV Drainage Survey

Using Crawler-mounted and push-rod inspection systems, we produce water-industry standard reporting in PDF format with accompanying camera footage and survey-grade connectivity plan.

Underground Utility Detection

Using Electromagnetic Location (EML) and Ground Penetrating Radar (GPR) equipment we are able to accurately locate sub-surface utilities. This can either be 2D or 3D data superimposed onto survey base data, either client-supplied or produced in-house.

essex surveying, cctv drain surveys essex, cctv drainage surveys essex, drain survey essex, residential survey essex

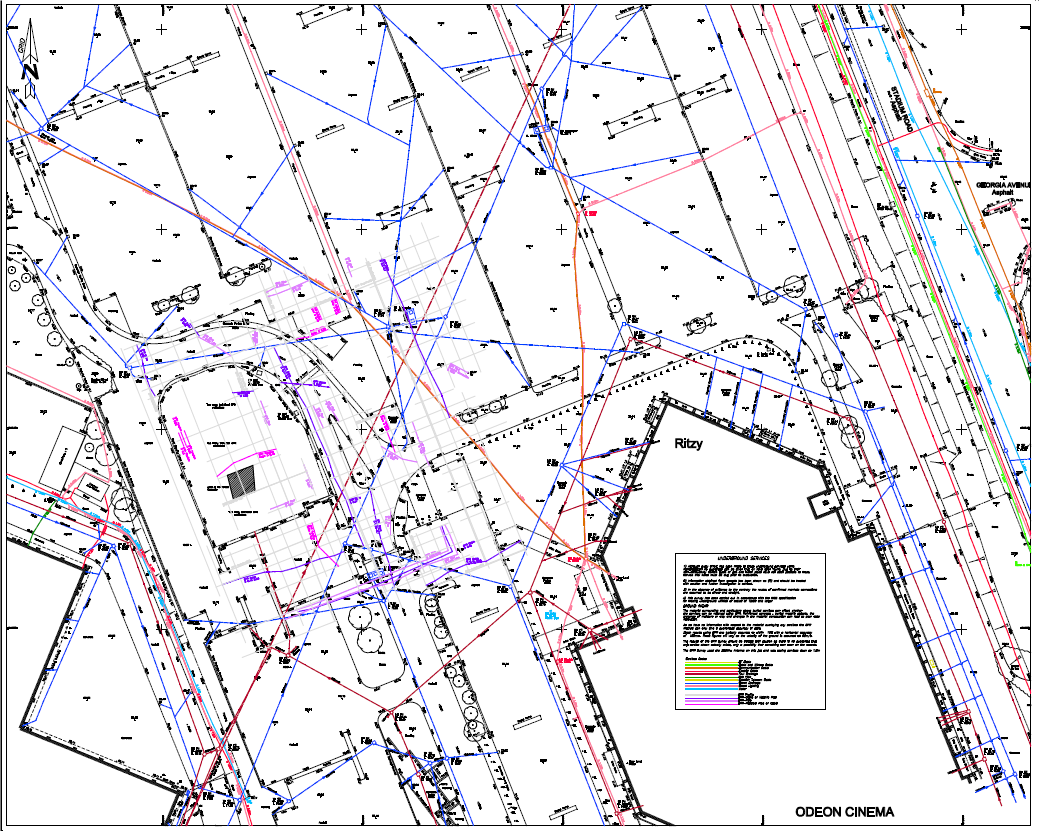

PAS128 Utility Detection

Adhering to PAS128, we provide accurate and comprehensive utility detection and underground surveying using non-intrusive techniques.

Ground Penetrating Radar (GPR Survey)

Site data collection is conducted by our experienced drainage underground survey teams using a selection of Electromagnetic Location (EML), acoustic/dye testing, & camera techniques, recorded by GPS and Total Station.

Underground Utility Records Search

Desktop studies, these draw together the individual Statutory Authorities records into a single manageable PDF document. An Important tool alongside site investigations when working within the public realm.

underground surveying, underground utility survey, underground services survey, underground survey, underground surveying methods

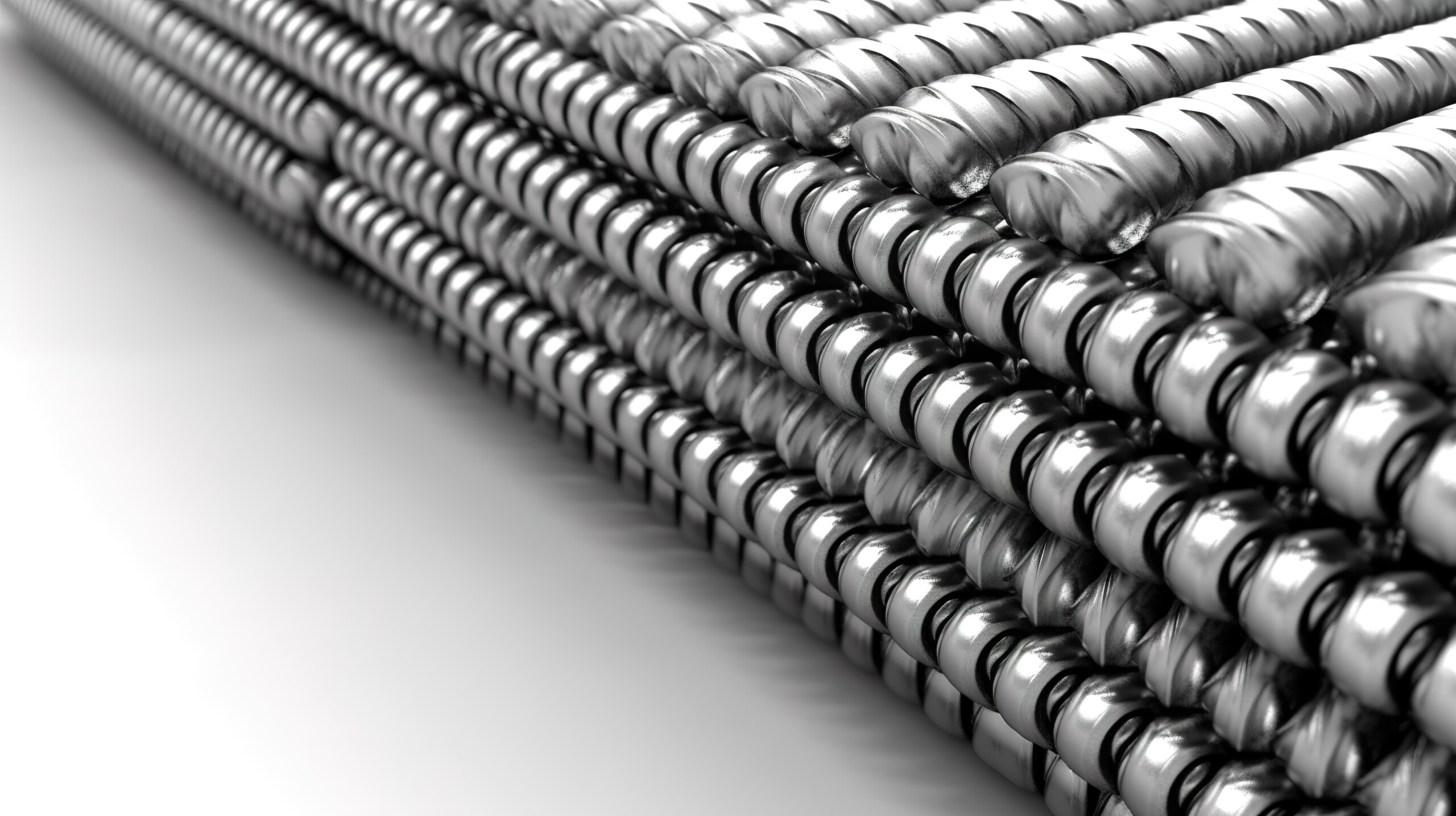

Rebar Location and Mapping

Using Elcometer concrete inspection equipment we can quickly and accurately measure the orientation and the depth of cover over reinforcement bars as part of our underground services survey.

3D Services Models

Detectable underground services are modelled either as 3D AutoCAD drawings or Revit models. Accessible underground and above ground services are laser scanned and a model produced from the point cloud.

Recent Projects

Deep Entry Sewer Alignment Survey | Harrow, London

Requirements and Logistical Issues

We were asked to provide a line and level survey of a Thames Water Trunk Sewer that passed diagonally under the proposed development site. The logistics of the operation were complex due to a number of reasons – the first being the access points within the middle of the highway – and the second being the depth of the pipe which was circa 15m deep.

Pre-survey H&S and logistics works

We carried out the initial reconnaissance visit to check the logistics of the operation and to provide us with the necessary information required to produce the methodologies, risk assessments and safe systems of work for the man-entry visit.

Trust our expert team to tailor our services to your project

Our in-house UK land survey team is here to provide complete land and building survey services. Contact us about your project today and see what land survey services we can combine for seamless hassle free data collection and compilation.
