What is a Topographical Survey?

A topographical survey, often referred to as a “topo survey” or “land survey”, is a detailed and accurate representation of the natural and man-made features on a specific piece of land. It includes the land’s contours, elevations, and physical features such as trees, buildings, roads, and rivers. The primary goal is to provide a clear and precise map or plan that shows the terrain and any significant features within a designated area. The survey can be provided in various forms, from hardcopy paper plans, to 2D CAD drawings and 3D digital models.

What is the Purpose of a Topographical Survey?

The purpose of a topographical survey is to accurately map and document the physical features and terrain of a piece of land. This detailed information serves multiple critical functions across various industries and projects. Primarily, it aids in planning and design by helping architects and engineers create structures and infrastructure that fit seamlessly within the land’s natural features, ensuring stability and safety. In construction, topographic surveys assist in site preparation by identifying the best locations for foundations and drainage systems and help in calculating the amount of earth that needs to be moved, optimising costs and timelines. For land development, these surveys inform urban planning and landscaping, ensuring efficient use of space and resources. They also play a crucial role in environmental management by assessing the impact of proposed developments on the natural environment and aiding in the creation of mitigation strategies. Legally, topo surveys are essential for defining property boundaries accurately, which is crucial for legal documentation and resolving boundary disputes. Additionally, they are valuable for infrastructure maintenance, helping manage utilities and plan repairs for existing roadways and infrastructure. In essence, a topographical survey provides a accurate and detailed map of a land area, detailing its natural and man-made features, which is invaluable for ensuring that projects are safe, efficient, and environmentally friendly.

land survey topography, topographical survey meaning, topographic survey company, drone topographic survey, what is a topographical survey,

What Information is Captured?

The detail captured during a land survey can be tailored to the specific needs of each project, but in most cases will include:

  • Site Boundaries
  • Buildings and structures
  • Street furniture and overhead cables
  • Trees, bushes, and vegetation positions
  • Ground levels, contours, and surfaces
  • Manhole and Inspection Covers
  • Eaves and Ridge Heights (on site/adjacent if required)
  • Road markings

What Equipment is Used?

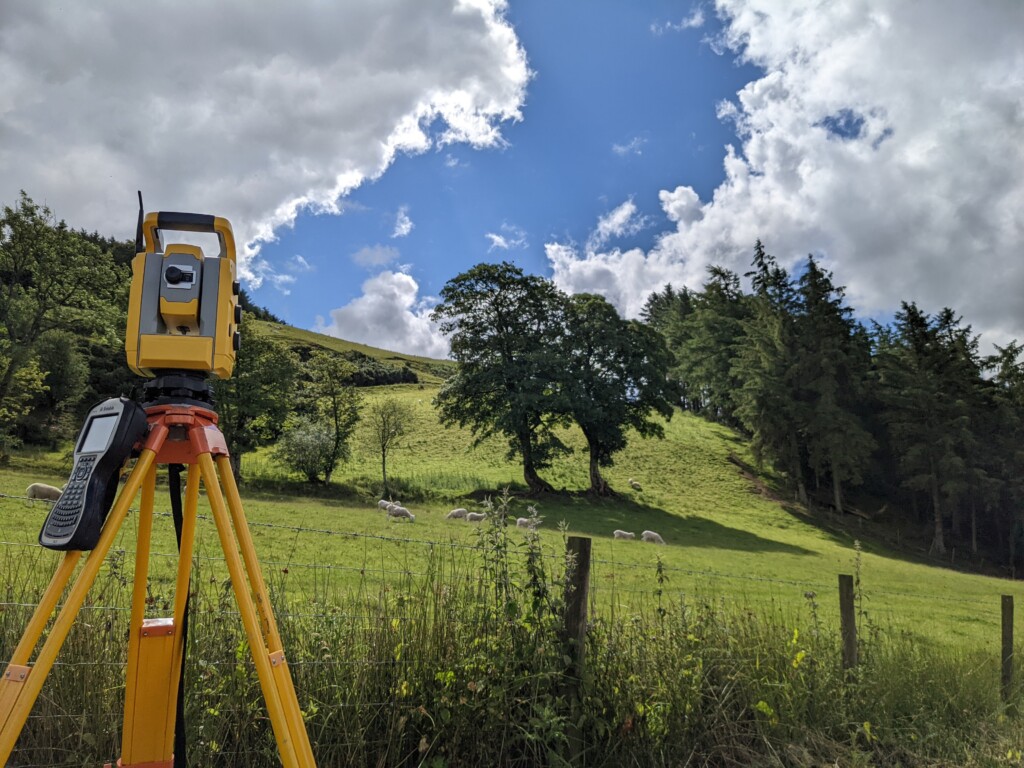

Survey companies employ a range of survey equipment for topographical surveys depending on the site and requirements. Traditional data capture involves a tripod mounted total station and GPS instrumentation. Laser scanners offer rapid data collection and can excel in areas with hard detail, while drone surveys efficiently capture vast amounts of data, particularly in open areas. Traditional survey methods, such as total stations, are recommended for overgrown or foliage-rich environments.

land survey topography, topographical survey meaning, topographic survey company, drone topographic survey, what is a topographical survey,

What are the key benefits?

  • Accurate Site Data – Topographic surveys provide precise information about ground levels, contours, and above ground features. This data is crucial for accurate project planning and design.

  • Risk Management – By understanding the topography of a site, you can identify potential risks and challenges early in the project. This aids in developing effective risk mitigation strategies.

  • Optimised Design –The detailed information from a topo survey allows for more informed and optimised design decisions. It ensures that structures are placed appropriately, considering the natural features of the land.

  • Cost Savings – Proper planning based on accurate and detailed land survey data helps avoid costly mistakes during construction. It enables efficient use of resources and minimises the need for corrective measures.

  • Regulatory Compliance – Many projects require compliance with local regulations. Topographical surveys provide essential data for meeting these requirements and obtaining necessary approvals.

  • Enhanced Safety – Understanding the terrain is crucial for health and safety planning. Instructing a Land Survey can help identify potential hazards and ensures that appropriate safety measures are put in place.

How long does the survey take?

The time taken to complete a topographical survey can be dependent upon several factors, primarily the size of the site and the level of detail required. Open rural sites can be efficiently surveyed, due to their expansive and unobstructed nature. On the other hand, intricate built-up sites may require a more a more controlled approach which can extend the survey duration.

What deliverables are available?

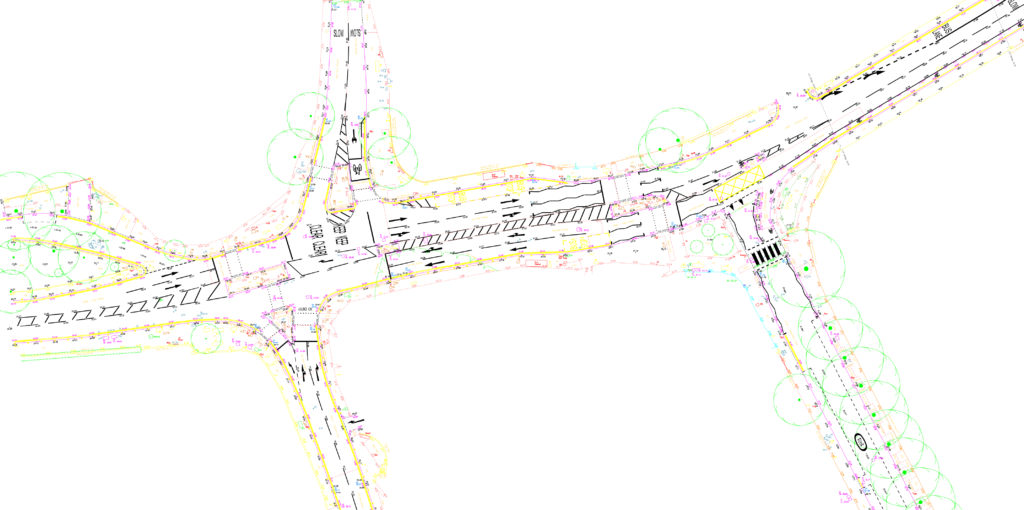

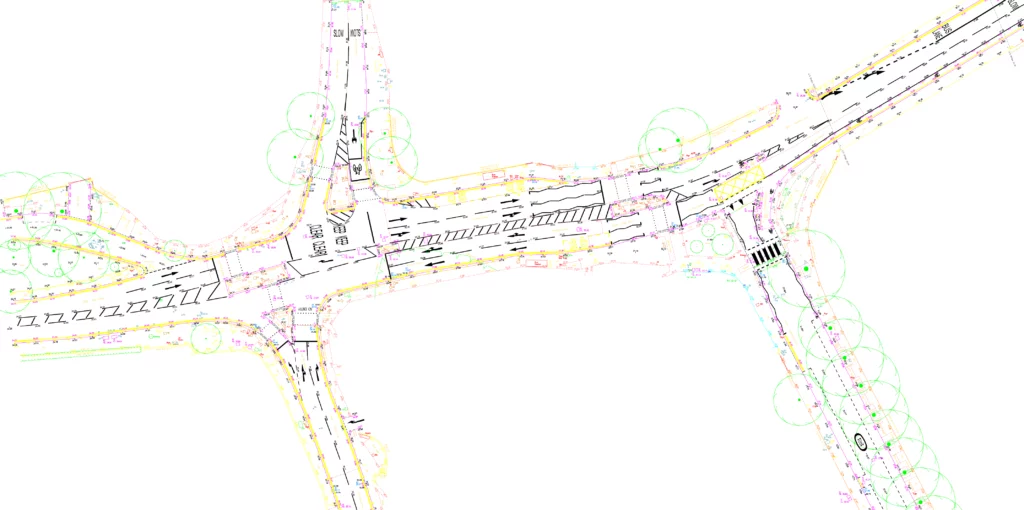

Topographical surveys can be delivered in a range of formats depending on project requirements. 2D and 3D CAD formats are the most widely used. However, 3D Models can be provided in several formats enhancing the compatibility with Building Information Modelling (BIM) processes.
